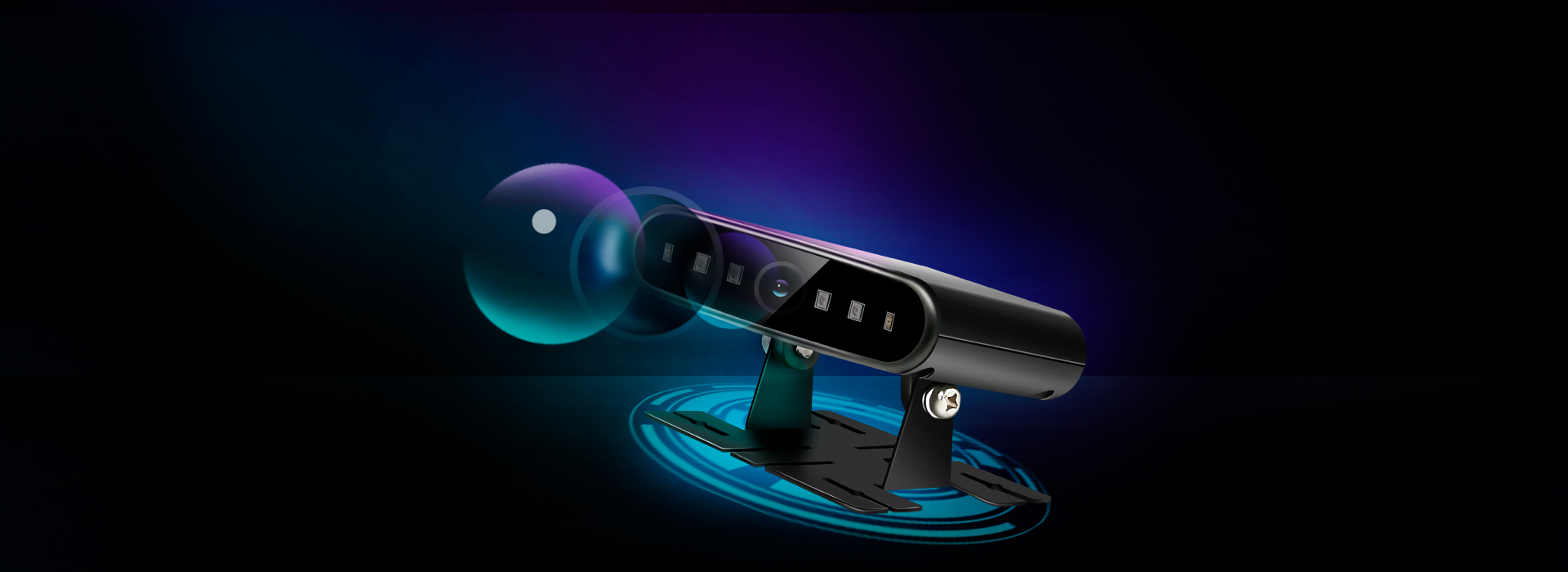

Bus Passenger Counting Camera
Description
The 1080P bus passenger flow counting camera has a built-in algorithm that applies deep learning technology to provide real-time recognition and motion tracking of people in the captured images, thus realizing highly accurate counting of passenger flow. It can be used alone with a monitor as a bus passenger flow counting device, or it can be accessed to MDVR to obtain real-time passenger flow data to realize intelligent vehicle scheduling, passenger flow analysis, fare evasion warning and route planning, etc., to improve the operational efficiency of public transportation. Convenient installation, low power consumption, low cost, suitable for buses, coaches, school buses, subways, trains and other vehicle scenarios demanding passenger flow statistics
Features
【Intelligent Public Transportation Management】 Equipped with vehicle-mounted DVR to obtain real-time passenger flow data, it can achieve public transportation management functions such as intelligent vehicle scheduling, intelligent passenger flow analysis, fare evasion warning and route planning.
【Built-in Algorithm】 The algorithm is integrated into the camera, compared with solutions in the market dealing with the algorithm in the MDVR, there is a significant improvement in detection accuracy and detection frame rate. The algorithm frame rate reaches 30 fps, the accuracy can be as high as 98%.
【Alarm Output】Support alarm output, under situations like overloading, crowdedness when getting on and off, the device will send alarm to the display or MDVR, to strengthen the control of public transportation passenger flow, and help avoid accidents.
Operating Temp. & Humidity | -20 ~ 70℃ RH95%MAX. |
Storage Temp. & Humidity | -30 ~ 80℃ RH95%MAX. |
Waterproof Rating | IP66K |
Image Device | 1/2.9″ CMOS |
FPS | 2~30 |
Effective Pixels | 1920 (H) x 1080 (V) |
Pixel Size | 2.8 μm x 2.8 μm |
Scanning System | Progressive Scanning |
Sync. System | Internal |
Dynamic Range | 81dB |
Main Stream Resolution | D1/720P/960P/1080P |
Sub Stream Resolution | CIF/D1 |
Audio Format | G.711A/G.711U |
AGC | Auto |
White Balance | Auto |
BLC | Auto |
Electronic Shutter | 1/25 (1/30)～1/50,000 Seconds |
Minimum Illumination | 0.1 Lux |
Power Supply | DC12V / IEEE 802.3af POE |
Audio | Yes |
Viewing Angle | 120° |
Why do you need Bus Passenger Counting Cameras?
First, passenger flow data are crucial to public transportation scheduling, as uneven passenger flow time and vehicle capacity often lead to inefficiency in carrying passengers.
Second, it can help to avoid traffic accidents under certain circumstances. Due to the lack of accurate perception and control of passenger flow, there have been safety accidents caused by overloading.
Built-in AI algorithm, support DMS algorithm
DMS algorithm supports to detect fatigue, distraction, smoking, making phone calls, no mask, no driver, FACEID face identification, not wearing seat belts, camera blocking, etc. ) Support multi-language voice alerts, and support custom-made AI Algorithm.
Accurate passenger flow statistics, flexible vehicle planning
The public transportation passenger flow statistics camera applies deep learning technology to target tracking, monitoring, and technically integrated all-round image acquisition to realize real-time awareness of passenger flow changes. It provides a scientific basis for the operating and scheduling of the public transportation system, helps the fleet to reasonably allocate vehicles, improves the scheduling efficiency and safety, and improves the public transportation service. Meantime, scientific planning can reduce urban traffic congestion, the number of vehicles in service, environmental pollution, and enhance social and economic benefits.
intelligent Public Transportation Management
Equipped with on-board DVR, it obtains passenger flow data in real time and conducts intelligent analysis through major stations, route and shifts, passenger flow distribution points, on and off peaks, etc. to provide decision-making support for route optimization and planning. It analyzes historical passenger flow data to estimate daily fare and establish an efficient and accurate fare monitoring system; at the same time, it evaluates the operating conditions through passenger flow data to help bus route planning. The application of this intelligent passenger flow analysis system will strongly support and improve public transportation management.
How does it work
All-whether Working Capability Strong adaptability to driving environment, working 24/7, not limited by weather conditions and day/night shift.
Advanced hardware design
Built in algorithm with greater accuracy
The algorithm is integrated into the camera, compared with solutions in the market dealing with the algorithm in the MDVR, there is a significant improvement in detection accuracy and detection frame rate. The algorithm frame reaches 30 fps, the accuracy can be as high as 98%. The device can be used for various senarios, realizing highly accurate counting under crowdedness, passenger getting on and off abreast, side by side or wandering. It can also effectively detect and count people in special clothes and at different age.
Alarm output Support alarm output, under situations like overloading, crowdedness when getting on and off, as well as passenger stranded, the device will send alarm to the display or MDVR, to strengthen the control of public transportation passenger flow, ensure passengers' safety, and help avoid accidents
Support iOS/Android phone connection, humanized APP/WebUI control
This APP supports hotspot, iOS/Android Wi-Fi Direct, no need for an extra monitor, video viewing in real time, parameter configuration and video playback, etc.
STONKAM DMS & ADAS AI Dashcam adopts all-in-one design, fully function. Built-in AI algorithm, support ADAS & DMS function. It is compact and beautiful, easy to install. It can provide functions of remote monitoring and alarming, to achieve efficient fleet management. It is widely used in government supervision, transportation companies, logistics and distribution and passenger transportation industries, providing intelligent in- and out-vehicle monitoring solutions for trucks, dangerous chemical transport vehicles, buses, buses, cabs, online vehicles, ambulances, etc.
