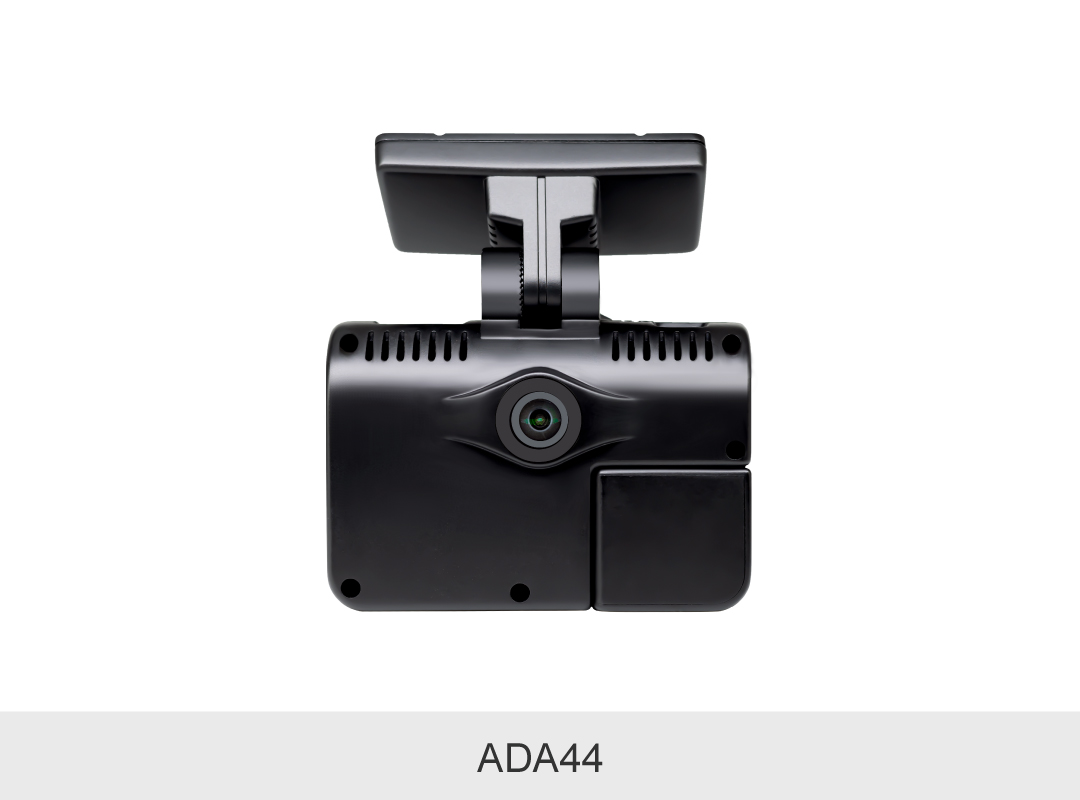

Intelligent DMS & ADAS AI Dashcam

ADA44

Inquire

Description

STONKAM DMS & ADAS AI Dashcam adopts all-in-one design, with built-in 4G/WiFi/GPS antenna, front view/DMS camera. It is a standalone device, no need for complicated attachments. The built-in 2K front view camera monitors the vehicle driving condition in real time externally and provides ADAS functions such as lane departure warning and forward collision warning. The cabin monitors the driver’s status and will issue audible and visual alerts when the driver shows any abnormal driving behavior. It is compact and beautiful, easy to install. It can provide functions of remote monitoring and alarming, to achieve efficient fleet management.

Features

  • 【All-in-one Design】With built-in 4G/WiFi/GPS antenna, front view/DMS camera. Fully function; One-step sticking, easy installation
  • 【AI Algorithm】Built-in AI algorithm, support ADAS & DMS function, advance warning driver’s attention to potential danger, will trigger sound and visual alert when driver has any abnormal driving behaviors
  • 【2K Front View Camera】Built-in 2K front view camera to minitor front driving images; Support WDR, excellent day and night effect
  • 【Fleet Management】Built-in GPS/ 4G, remote real-time monitoring and alarming, convenient for remote command and dispatch, one-button alarm for driver if there’s emergent events ; built-in intercom function, support remote command & dispatch; Built-in G-Force，analyze driver’s behaviors and carry out training courses; support multiple alarm recording, loop recording
  • 【Hardware Advantage】Advanced heat dissipation, compact and beautiful; Multiple interfaces, available for various sensors; Support 2-4 channel additional camera, no need for an extra control box; OBD(CANBUS) vehicle information collection
  • 【Mobile App Wireless Direct Connection】This APP supports hotspot, iOS/Android Wi-Fi Direct. Users can use set parameters to check the recordings and other functions
System Operating system Linux
Operating interface Mobile APP/WebUI
Video permission Administrator & user setting
Video Video input Built-in 2K+Built-in 1080P+External 2*1080P
Video output PAL: 25 fps, NTSC: 30 fps
Compression H.264/H.265
Audio Audio input Built-in mic
Audio output Built-in speaker
Record format Synchronized video & audio recording
Audio compression ADPCM
Digital processing Video resolution 2K/1080P/720P/D1
Storage Video bit rate 64kbps~10Mbps/channel
Audio bit rate 32kbps
Storage consumption 56~2700MB/（channel*hour）
Disk Media Micro SD card x 2, max 512GB*2
Alarm Alarm input 6 CH
Alarm output 2 CH
Interface for communication RS232 1 CH
RS485 1 CH
CAN 2 CH
RJ45 1 CH
USB 1 CH
Wireless 2G/3G/4G Optional
WIFI 2.4g
WIFI hotspot Optional
GPS Optional
G-Force Six-axis sensors Optional
Software Windows client Optional
iOS client Optional
WebClient Optional
Power Input 10~32V
Output 12V@4A
Power Supply less than 8W
Standby Power Consumption Not Optional
Electrical specifications Operating temp. & humidity -20～60 ℃, RH 80%MAX
Super Capacitor Optional

All-in-one design, fully function

With built-in 4G/WiFi/GPS antenna, ADAS/DMS camera，all-in-one fully function.

Built-in AI algorithm, support ADAS & DMS algorithm

Support forward collision warning (FCW), lane departure warning (LDW), pedestrian detection (PD), front vehicle start warning, and distance monitoring warning. DMS algorithm supports to detect fatigue, distraction, smoking, making phone calls, no mask, no driver, FACEID face identification, not wearing seat belts, camera blocking, etc. ) Support multi-language voice alerts, and support custom-made AI Algorithm.

Built-in 2K front view camera, support WDR for best image effects

2K front view camera, support ultra-high definition video recording during vehicle driving, record fully details. Support WDR, excellent day and night effect.

Fleet Management

Advanced hardware design

Large area metal lines and multi-sided heat sinks make effective heat dissipation effect; The body is compact and beautiful, reducing the user’s line of sight interference; Multiple interfaces, available for various sensors: Tire Pressure Sensor, Temperature Sensor, Weighing Sensor, Liquid level Sensor, Audible and visual Alarms, Open/close door Sensor, Seat Vibrator(for DMS fatigue warnings) and so on; Support 2-4 channel additional cameras, available for left, right and rear view monitoring, no need for an extra control box, externally connectable AI camera for BSD pedestrian and vehicle recognition; Support multi-channel ultrasonic radars which give warning in close range, millimeter-wave radars which give large range warnings; OBD(CANBUS) vehicle information collection. Connecting with third-party devices or vehicle master control, this function integrates the information: collecting core information of the vehicle like fuel consumption, rotation speed, vehicle speed etc. Then these information would be uploaded to the platform, making it convenient for fleet managers to count idle work, count driving violations, and evaluate drivers

Support iOS/Android phone connection, humanized APP/WebUI control

This APP supports hotspot, iOS/Android Wi-Fi Direct, no need for an extra monitor, video viewing in real time, parameter configuration and video playback, etc.

Applications

STONKAM DMS & ADAS AI Dashcam adopts all-in-one design, fully function. Built-in AI algorithm, support ADAS & DMS function. It is compact and beautiful, easy to install. It can provide functions of remote monitoring and alarming, to achieve efficient fleet management. It is widely used in government supervision, transportation companies, logistics and distribution and passenger transportation industries, providing intelligent in- and out-vehicle monitoring solutions for trucks, dangerous chemical transport vehicles, buses, buses, cabs, online vehicles, ambulances, etc.
